Crane Bodies
RM-Series Crane Body
Mechanics crane bodies with torsion-box understructures and cranes from 5,000 to 12,500 lb.

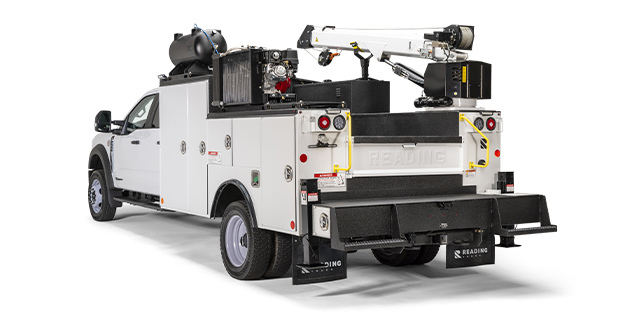

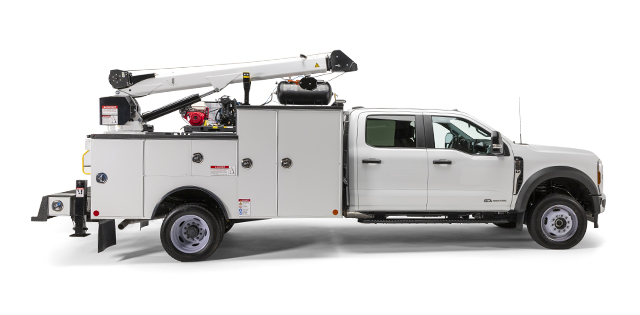

The RM-Series mechanics crane bodies pair a torsion-box understructure and lockable drawer storage with an integrated hydraulic crane, spanning the RM-25 through RM-78 (5,000 to 12,500 lb capacity). Built for field mechanics and heavy equipment service.
See eligible inventory in stock
Jump to the units in stock that can take this upfit.
Pricing is by quote — we spec the body and chassis to your job.
Features
- Torsion-box understructure for strength and durability
- Spray-on bedliner with slip-resistant load floor
- 3-point locking compression handles
- Integrated headache rack with wire channel
- Six load-floor tie-down rings
- Class V hitch rated to 20,000 lb (2.5" receiver)
- Outriggers rated to 39,000 lb
Specifications
- Model range
- RM-25, RM-35, RM-45, RM-78
- RM-25
- Up to 5,000 lb
- RM-35
- Up to 6,000 lb (39,000 ft-lb moment)
- RM-45
- 5,000–8,000 lb (45,000 ft-lb)
- RM-78
- 8,000–12,500 lb (78,000 ft-lb)
- RM-35 body
- 11' length, 84" CA, 44"/60" heights
Optional Equipment
7- or 10-drawer compartment configsMaster-locking steel slide barLED strip compartment lighting2,400-lumen work floodlightsOxy-acetylene tank compartment
Built for
Field mechanic serviceHeavy equipment maintenanceUtility & infrastructureConstruction support
Spec your RM-Series Crane Body with the Quirk fleet team
Tell us what you haul and we’ll match the right body to the right chassis — sold and installed across Maine. No pricing games, just a straight quote.
