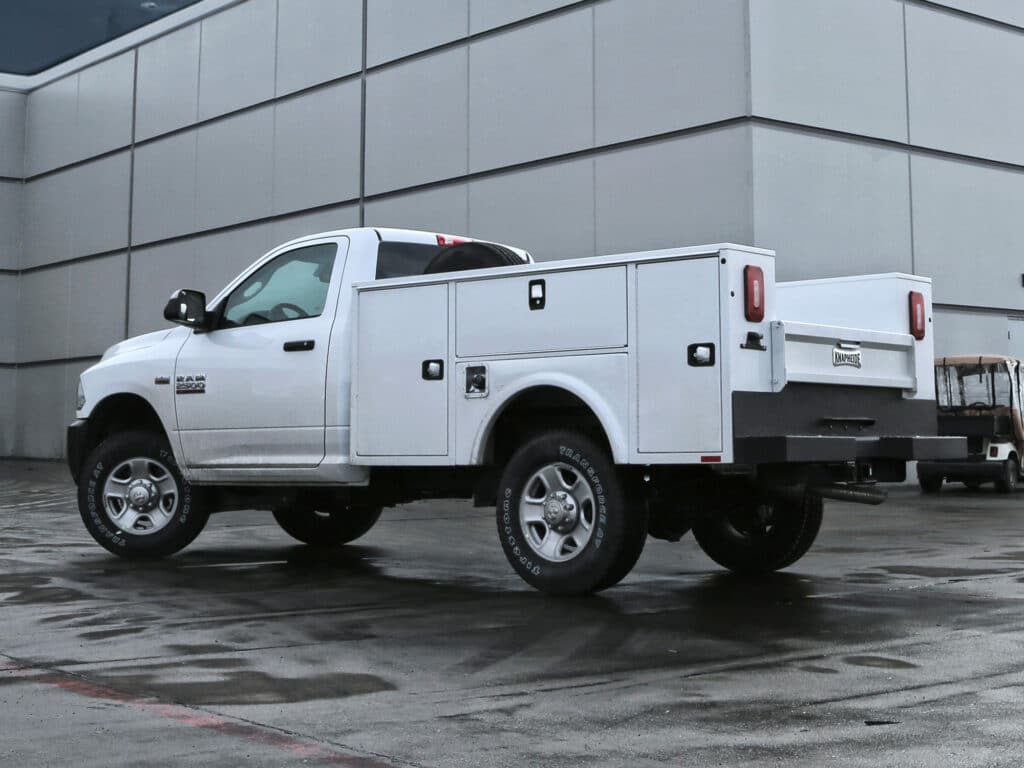

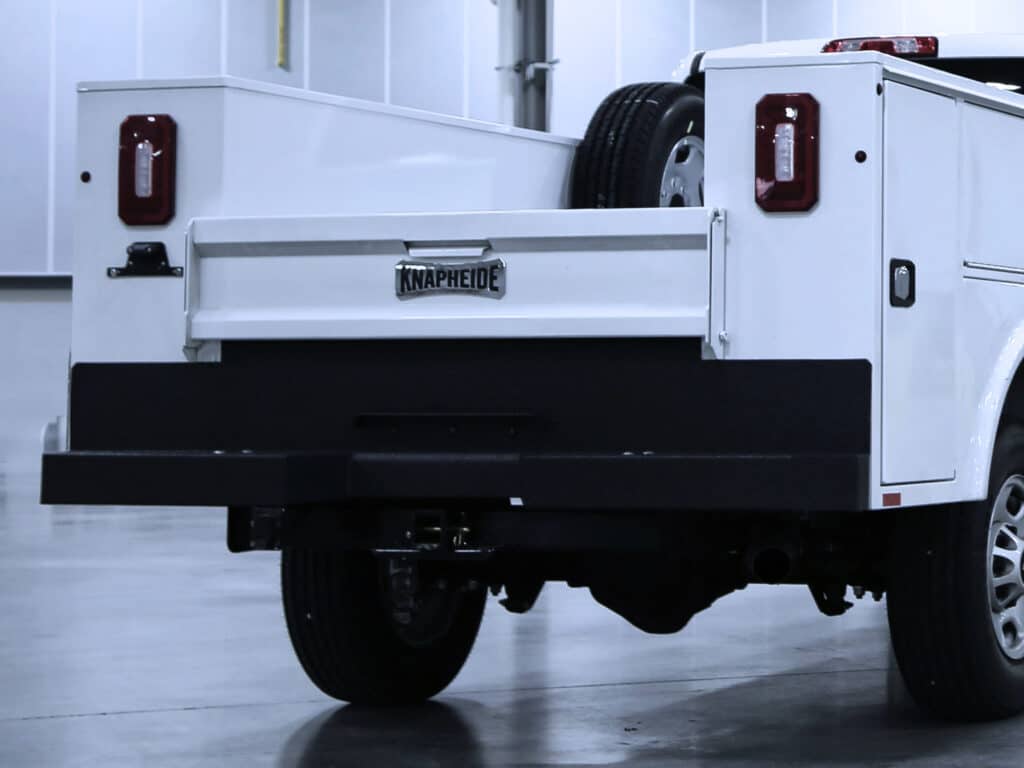

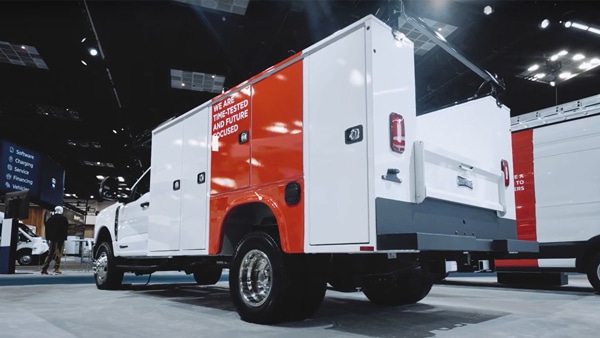

Aluminum Service Body
Military-grade aluminum that drops weight for more payload — backed 10 years against rust-through.
The aluminum service body delivers the same compartment layouts and durability as Knapheide's steel body in 6061-T6 and 5052 military-grade aluminum, cutting hundreds of pounds for added payload. Aerospace-grade fasteners and an all-aluminum understructure resist corrosion, backed by a ten-year no-rust-through warranty.
See eligible inventory in stock
Ford HD PickupsFord Chassis CabRam HD PickupsChevrolet HD PickupsGMC HD PickupsChevrolet Chassis CabGMC Chassis Cab
Jump to the units in stock that can take this upfit.
Pricing is by quote — we spec the body and chassis to your job.
Features
- 6061-T6 and 5052 military-grade aluminum construction
- All-aluminum understructure and Return-Flange extruded floor
- Aerospace assembly with corrosion-coated structural fasteners
- Continuous aluminum hinge with stainless steel rods
- Nitrogen-strut door retainers stop involuntary swing
- Automotive-quality rotary latches with easy-open handles
- Slam-lock tailgate with one-hand center release
- Surface-mount LED stop/turn/tail and back-up lighting
- Adjustable divider shelves rated to 250 lb
- Significantly lighter than steel for increased payload
Specifications
- Material
- 6061-T6 and 5052 military-grade aluminum
- Corrosion protection
- Naturally corrosion-resistant; EcoGuard-coated steel fasteners
- Warranty
- Ten-year limited, no rust-through
- Standard body height
- 40" (36" Low Profile)
- Tall body heights
- 46" and 60"
- DRW floor width
- 54"
- Compartment depth
- 20"
- Weight savings
- ≈A698 588 lb vs. ≈1,048 lb for the comparable steel body
- Model series
- A672 / A682 / A698 / A6110 / A6132 (by cab-to-axle & wheel config)
- Shelf capacity
- 250 lb per adjustable shelf
Optional Equipment
Low Profile, Flip Top, or raised front compartmentsPlus-50 transverse compartment (50% more storage)Forklift-loadable utility rack (1,000 lb)Rear liftgatePower locks and master locksLED compartment lights and front strobeAluminum drawers and pull-out traysHitch-recess or straight bumpersModular cab guard, E-Track, and cargo tie-downs
Built for
ConstructionUtilities & municipalOil, mining & gasPayload-sensitive fleets
Spec your Aluminum Service Body with the Quirk fleet team
Tell us what you haul and we’ll match the right body to the right chassis — sold and installed across Maine. No pricing games, just a straight quote.
